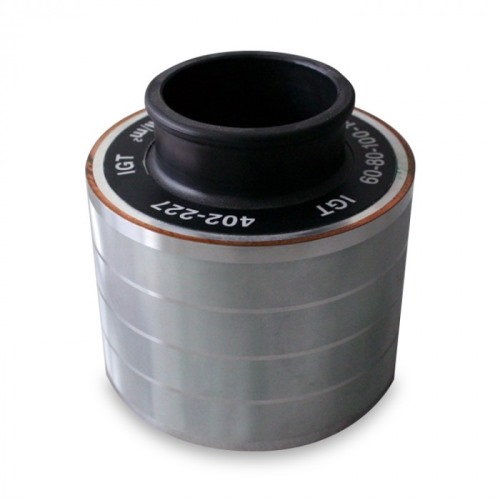

Anilox disc copper engraved and chromium plated
4 bands，60; 80; 100; 140 l/cm，Stylus 130°，Angle 53°
Volume 12.0; 9.0; 7.0; 5.0 ml/m² – 7.7; 5.8; 4.5; 3.2 BCMI
This anilox has the same configuration as disc 402.227, the difference is that this anilox has a contiuous engraving and the anilox 402.227 has a blank (no engraving)
4 bands，60; 80; 100; 140 l/cm，Stylus 130°，Angle 53°
Volume 12.0; 9.0; 7.0; 5.0 ml/m² – 7.7; 5.8; 4.5; 3.2 BCMI
This anilox has the same configuration as disc 402.227, the difference is that this anilox has a contiuous engraving and the anilox 402.227 has a blank (no engraving)
IGT 镀铬网纹辊四段式 60;80;100;140L/CM,S130°,A53°,V12.0;9.0;7.0;5.0M/LM²-IGT 402.228
Available for all F1 versions, GST and Amsterdam devices use the corresponding extension.
Please mention for which device you need the anilox and the serialnumber.
| Weight: | 0.27 kg |
| Dimensions(L x W x H): | |
| Model: | 402.228 |
| Main application: | Flexographic printing |
| Conformance with standards/W-leaflet: | ISO2834-2, ISO 2846-5 |
| Water bath and temperature: | — |
| Speed range and modes: | — |
| Forces: | — |
| Substrate requirements: | flexible and rigid substrates |
| Interval time and number: | — |
| Printing shafts type and options: | 34 mm |
| Shaft positioning: | specify instrument to be used |
| Lifting system: | — |
| Print length and width: | 400 x 50 mm_400 x 100 mm_ (F1-100) |
| Printing discs: | Anilox chromic 4 bands 60;80;100;140 l/cm S130 |
| Sector positioning: | — |
| Sector type and options: | photopolymer |
| Doctoring system: | use separate doctor blade for different layout of gravure or alilox discs |
| Dispensing system: | Pasteur pipet |
| Pre-programmed tests: | — |
| Analysis options: | — |
| Interfaces: | — |
| Software updates: | — |
| Data export options: | — |
| Additional items: | — |
| Accessories: | lint free cleaning towel and velvet for cleaning the depth of the cells |
| Inks or liquids: | inks |
| Inking speeds: | — |
| Inking programs: | — |
| Top rollers: | — |
| Maintenance: | Keep clean and dry before use, clean carfully with alcohol or etylacetate, or a suitable solvent for the used ink, use a velvet pad to deep-clean the cells. Do not use an ultrasonic bath without specific instruction from IGT to do so. |
| Compatible instruments: | F1 all versions G1-5 GST2 Amsterdam |
| Measurement range: | — |
| Light source/ power/angle: | — |
| Volume: | — |
| Shelf life: | — |
| Use life: | — |
| Description of property: | — |
| Cleaning: | Use a cleaning solvent or soap suitable for the the ink used. Do not use an ultrasound cleaning device unless instructed explicitly by IGT |
| Power Supply Requirements: | — |
| Guarantee: | one year on production failures |
| Space requirements: | — |
| Standard delivery time: | 10-12 weeks |
