Standard solution for viscometer calibration
发布时间：2024-01-12 23:47
넶浏览量：0
In order to measure viscosity correctly, it is necessary to calibrate the viscometer with a standard viscosity material.

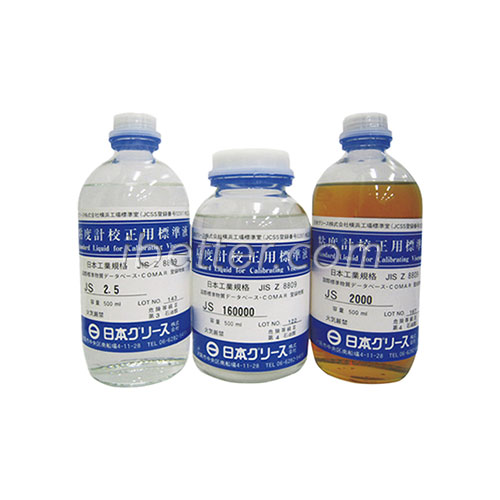

We handle the standard solution for viscometer calibration, which is the only JIS product manufactured by Nippon Grease Co., Ltd. and has been calibrated by JCSS.
Types of standard solution (standard values and approximate values in JIS Z 8809)
| Type | Criteria Values | Summary Values | |||
| Kinematic Viscosity mm3/s | Viscosity (mPa·s) | ||||
| 20℃ | 20℃ | 25℃ | 30℃ | 40℃ | |
| JS 2.5 | 2.5 | 2 | - | 1.6 | 1.4 |
| JS 5 | 5 | 4.1 | - | 3.2 | 2.5 |
| JS 10 | 10 | 8.4 | - | 6.1 | 4.6 |
| JS 20 | 20 | 17 | - | 11 | 8.2 |
| JS 50 | 50 | 43 | - | 27 | 18 |
| JS 100 | 100 | 86 | - | 51 | 32 |
| JS 200 | 200 | 170 | - | 95 | 56 |
| JS 500 | 500 | 440 | - | 230 | 130 |
| JS 1000 | 1,000 | 890 | - | 430 | 230 |
| JS 2000 | 2,000 | 1,800 | - | 820 | 420 |
| JS 14000 | 14,000 | 12,000 | - | 4,800 | 2,100 |
| JS 52000 | 52,000 | 46,000 | - | 18,000 | 7,500 |
| JS 160000 | 160,000 | 140,000 | 90,000 | - | - |
上海备得数码科技有限公司作为东机产业TOKI SANGYO专业的销售与服务商，可提供东机旋转粘度计、锥板粘度计、转子适配器、标准液等配件耗材，同时提供仪器使用培训、维修校准、技术支持等售后服务，如有相关需求欢迎随时联系我们！
相关产品链接：
如需了解更多TOKI SANGYO东机产业的产品，欢迎访问https://www.ibetter.com/tokisangyo
